If you’ve been vaping for a while and you’re tired of dripping e-liquid onto your coils every ten minutes, squonk mods solve that exact problem. A squonk mod is a device with a built-in soft bottle that you squeeze to push e-liquid straight up into your RDA, giving you the flavor of dripping without the constant refills. This guide breaks down exactly how squonking works, what gear is needed, and how to pick a squonk mod that actually fits the way you vape.
Squonk setups range from budget regulated boxes to mechanical tube squonkers, and it’s worth being straight about what’s genuinely good versus what’s overhyped marketing.
Table of Contents
What Is a Squonk Mod?
A squonk mod is a vape device built around a silicone bottle housed inside the chassis, connected to a bottom-feed (BF) pin instead of a standard 510 pin. Squeeze the bottle, e-liquid travels up through the pin and saturates the cotton in your RDA. Let go, and the bottle refills itself with air as the vacuum resets.
This is the entire concept behind squonking: on-demand wicking without opening your tank or carrying a dripper bottle around. It’s a niche but well established corner of the mod world, sitting alongside standard box mods as one of the more advanced formats vapers move into once they outgrow simpler setups.
The squonk mod itself is really just the “engine.” You still need a compatible RDA on top and the right coil build inside it, so it’s less of a standalone device and more of a small system.
How Squonking Actually Works
Squonking isn’t complicated once you’ve done it a few times, but it does look intimidating to people coming from pod systems or a basic vape mod.

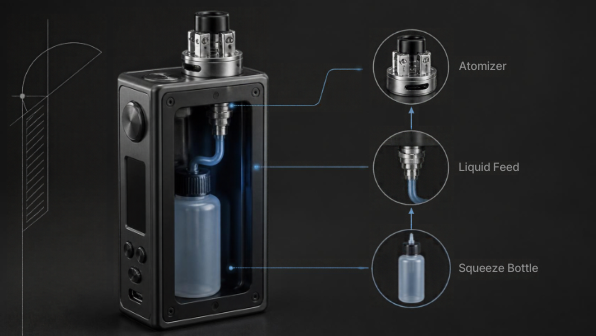

The Bottle-to-Atomizer Feed System
The silicone bottle sits in a cavity inside the mod, usually accessed through a magnetic door or sliding panel. A short piece of tubing runs from the bottle up through the BF pin at the top of the device. When you squeeze the bottle from outside the mod, liquid gets forced up the tube and into the deck of your RDA through small juice holes positioned under the coil.
Release the bottle and it naturally draws air back in through the same tube, which resets the vacuum for the next squeeze. It’s genuinely satisfying once it clicks, and most people get the hang of it within a day or two of use.
BF (Bottom-Feed) Pins Explained
The BF pin is what separates a squonk mod from a regular device. It’s a hollow pin, usually gold-plated, that threads into the mod exactly where a normal 510 pin would sit. Instead of just making electrical contact, it also acts as the channel liquid travels through.
Most quality squonk mods use a spring-loaded or adjustable BF pin so you can get a proper seal against different RDA deck designs. A loose or poorly seated BF pin is one of the most common causes of squonking problems, and it’s usually the first thing to check if liquid isn’t feeding properly.
Squonk Mods vs Regular Box Mods
This is where a lot of new squonkers get confused, so let’s clear it up. A standard box mod runs on a regular 510 connection and is built to work with tanks, RTAs, or RDAs that hold their own juice reservoir. A squonk mod is built specifically around feeding an RDA externally, and it won’t work properly with a sealed tank since there’s nowhere for the squonked liquid to go.
Here’s a quick comparison:
- Regular box mod: Works with tanks, RTAs, and RDAs. No internal bottle. Standard 510 pin.
- Squonk mod: Built for RDAs only (specifically squonk-compatible ones). Has an internal silicone bottle. Uses a BF pin.
- Vapor and flavor: Squonk mods generally deliver noticeably better flavor since RDAs sit closer to the coil with less airflow restriction than most tanks.
- Convenience: Regular mods with tanks win here, since you’re not manually feeding liquid every few minutes.
If you’re comparing the two categories more broadly and want the full breakdown of tank-based setups, our guide on vape tanks covers how those reservoirs and coil systems differ from the RDA style squonking relies on.
What You Need for a Squonk Setup
A squonk mod on its own does nothing. You need a small set of compatible parts to actually build a working setup, and this is where a lot of beginners overspend or buy the wrong gear.
Squonk-Compatible RDAs
Not every RDA works with squonking. You specifically need one with a BF pin option (usually the RDA ships with both a standard 510 pin and a swappable BF pin) and juice holes positioned under the deck so squonked liquid actually reaches the coil and wick. Popular squonk RDAs are built with wide juice channels and a shallow deck specifically so flooding is manageable and flavor stays strong.
If the RDA doesn’t have a BF pin option, it simply won’t work on a squonk mod, so this is the first thing to check before buying.
Silicone Bottles and Capacity
Most squonk mods ship with a bottle in the 6ml to 8.5ml range, which is usually enough for a solid session before needing a refill. A few things matter more than people expect here:
- Bottle material should be medical-grade silicone, since cheap silicone can degrade with certain e-liquid flavorings over time.
- Bottle shape affects squeeze feel; taller narrow bottles are often easier to control than short wide ones.
- Spare bottles are worth buying in bulk since silicone does wear out and start leaking after months of regular squeezing.
Single Battery vs Dual Battery Squonk Mods
This decision comes down to how you actually vape day to day, and it’s one of the more searched questions in the squonk mod kit space.
Single battery squonk mods are more compact, lighter, and easier to carry, typically running on one 18650 or 21700 cell. They’re a solid choice if you’re mostly vaping at low to moderate wattage, say under 60W, and want something pocket-friendly.
Dual battery squonk mods give you more sustained wattage, longer battery life between charges, and better performance if you’re running sub-ohm builds that pull more power. The trade-off is size and weight; these mods are noticeably chunkier and less discreet.
For anyone building coils under 0.3 ohms or vaping frequently throughout the day, a dual battery setup saves you from constantly swapping cells. If you’re a casual squonker doing occasional sessions, single battery is genuinely enough and a lot more comfortable to carry.
How to Choose the Best Squonk Mod for You
There’s no single “best squonk mod,” it depends on your experience level, budget, and what you actually want out of the setup. Here’s how to break down the decision.
Regulated vs Mechanical Squonkers
Regulated squonk mods have a chip inside controlling wattage, protecting against short circuits, and displaying battery life on a screen. This is what most people should start with, especially if you’re newer to rebuildables, because it protects you from the biggest risks of a bad coil build.
Mechanical squonk mods have no chip at all. Output is purely a function of your battery and coil resistance, following Ohm’s law directly. These are popular with experienced hobbyists who understand battery safety thoroughly, but they carry real risk for anyone who doesn’t fully understand resistance, amp limits, and battery ratings. The CDC has documented device malfunction and battery related injuries tied to improperly used unregulated devices, which is exactly why mechanical squonkers aren’t recommended for anyone still learning.
Popular Picks Worth Knowing
A few naming patterns come up constantly when people search for squonk mods, and it’s worth knowing what they refer to:
- Profile-style squonk mods are typically compact, single battery devices known for a snug ergonomic grip and reliable BF pin design, popular for all-day carry.
- Republic-style squonk mods usually refer to a broader family of dual battery, higher wattage devices aimed at vapers running larger coil builds.
Rather than chasing a specific brand name, focus on BF pin quality, bottle capacity, and whether the mod is regulated, since those three factors matter far more to daily performance than the label on the box.
Squonking Safety and Maintenance Tips
A squonk setup needs a bit more upkeep than a sealed tank, but it’s not high maintenance once you build the habit.
- Check your BF pin seal every time you swap RDAs, since a loose seal is the top cause of leaking or dry hits.
- Don’t overfill the bottle, leave a little air gap so the vacuum can actually reset properly between squeezes.
- Clean the bottle and tube monthly, especially if you switch e-liquid flavors often, since residue buildup affects flavor over time.
- Store extra batteries properly in a case, never loose in a pocket or bag, since loose cells touching metal is a known cause of short circuits. The FDA outlines battery handling risks tied to lithium-ion vape batteries specifically.
Common Squonking Mistakes
The same handful of mistakes come up over and over with people new to squonking, so here’s what to actually watch for.
One mistake that comes up constantly is people squeezing the bottle way too hard on the first try, flooding the RDA and getting gurgling or spitback. A firm, short squeeze is almost always enough. Another common issue is running a coil build that’s too tight or too low in resistance for the wicking to keep up, which leads to dry hits even with plenty of liquid in the bottle.
People also skip breaking in a new silicone bottle properly, which can leave a slight plastic taste in your first few tanks. A quick rinse and a short soak in warm water before first use solves this. Lastly, a lot of new squonkers use RDAs that aren’t actually squonk compatible and wonder why nothing feeds, so always double check for a BF pin option before buying you can check how much does a vape cost.
Once you get comfortable with the core mechanics of a squonk mod, it’s worth exploring the wider world of vape mods and how squonking fits into the bigger picture of rebuildable vaping, along with understanding the different types of vape pens if you’re coming from a simpler device and want to see how far the format has evolved.
Frequently Asked Questions
What is squonking in vaping?
Squonking is a method where e-liquid is stored in a soft bottle inside the mod and manually squeezed up into an RDA through a bottom-feed pin. It removes the need for constant dripping while still giving you RDA-level flavor.
Do I need a special RDA for a squonk mod?
Yes, you need an RDA with a bottom-feed (BF) pin option, since standard RDAs only have a regular 510 pin and won’t feed liquid from the bottle. Most squonk-specific RDAs ship with both pin types included.
Are squonk mods better than regular box mods?
Neither is strictly better, they serve different purposes. Squonk mods generally deliver better flavor through RDAs, while regular box mods paired with tanks offer far more convenience for all-day vaping without manual feeding.
Is squonking safe for beginners?
Regulated squonk mods are reasonably beginner friendly since the chip protects against shorts and battery issues. Mechanical squonk mods are not recommended for beginners since there’s no built-in protection if a coil build goes wrong.
How often do I need to refill a squonk bottle?
Most bottles hold 6ml to 8.5ml, which typically lasts a solid vaping session depending on how heavily you’re squeezing and your wattage. Heavy vapers running low-resistance coils will refill more often than casual users.
